What is an On-Grid Solar System
The On-grid system, also known as a Grid-tied system, is designed to work hand-in-hand with your local utility grid. This means that it relies on the grid to function. If there's a power outage and the grid goes down, the On-grid system won't be able to operate. Why the dependency on the grid? It's because the inverter, a critical system component, needs to receive a reference voltage from the grid to synchronize correctly. This synchronization is necessary for the system to export any excess energy it generates back into the grid. You might wonder if this system suits areas prone to power cuts. Generally, On-grid systems are most effective in places where daytime power cuts are infrequent or last for less than two hours. If your area fits this description, an On-grid system could be an excellent choice for you. One of the significant advantages of an On-grid system is its impact on your electricity bills. The initial cost is typically lower since it doesn't require expensive batteries like other systems. Additionally, you won't have to worry about ongoing expenses for replacing components, making it a cost-effective option in the long run.
How it works?
In an on-grid solar system, much like other solar setups, solar panels are the star players in generating electricity. These panels soak up sunlight and convert it into electricity, primarily during daylight hours. However, what sets an on-grid system apart is its connection to the local grid. This connection is where net metering comes into play, and it's crucial for understanding how your monthly electricity costs are impacted.
During sunny hours, your on-grid solar power system steps up to the plate, providing your home with the electricity it needs. But here's the kicker: when sunlight is limited, like during the night or on cloudy days, the system seamlessly switches to draw power from the grid, ensuring you have a constant supply of electricity. Now, let's talk about how those solar panels on your roof work their magic. Their strategic placement maximizes sunlight absorption, converting it into solar power. This power starts off as direct current (DC), but before it can be used to power your appliances and devices, it undergoes a transformation. That's where the inverter comes in, converting DC into alternating current (AC), the type of electricity your home appliances run on.
Here's where it gets interesting: when your solar panels generate more electricity than your home needs, the excess power isn't wasted. Instead, it's sent back into the national grid. Conversely, when your solar system isn't producing enough energy, you can pull electricity from the grid as needed. All this back-and-forth between your home and the grid is meticulously tracked by your meter box. It keeps a record of how much power you import from the grid and how much you export from your solar panels. At the end of the month, this data is used to calculate your net electricity usage, which determines whether you owe the utility company or if they owe you, reflected in your monthly utility bill.

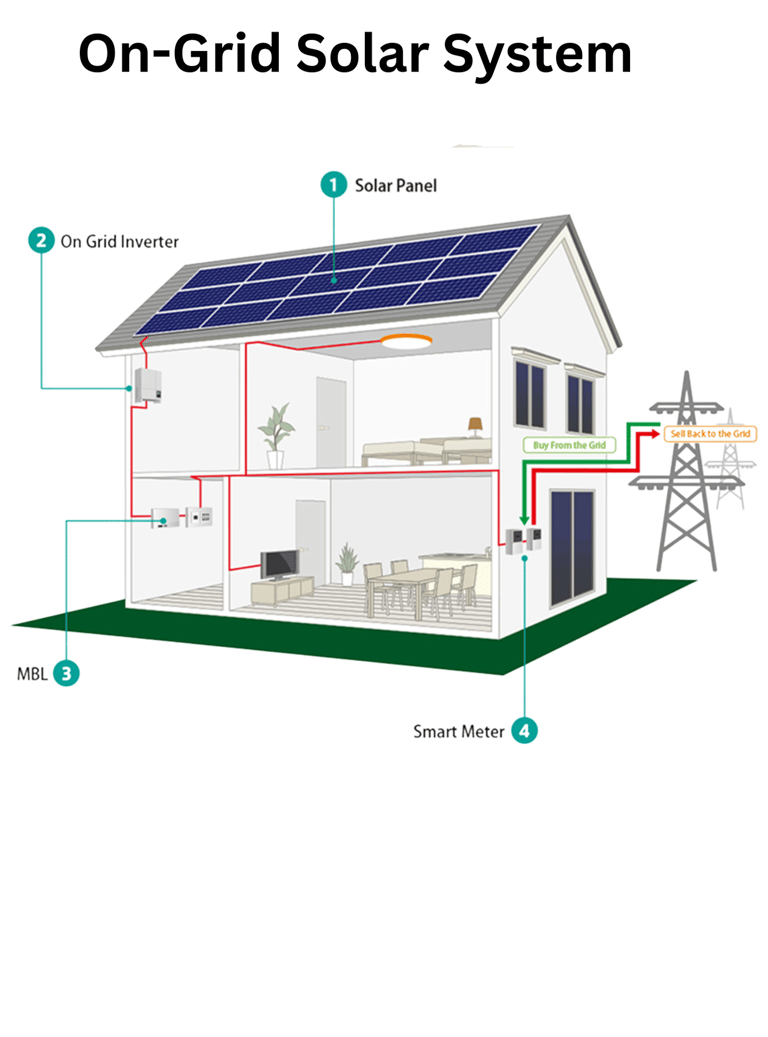

Components of On-Grid System
The primary components of a home-based on-grid solar system are the solar panels installed on the roof and the bi-directional inverters. These solar panels serve as the backbone of the system, capturing sunlight and converting it into usable electrical energy. They consist of photovoltaic cells that absorb sunlight and generate direct current (DC) electricity through a process called the photoelectric effect.
Now, the bi-directional inverters are the crucial link between the solar panels and your home's electrical system. These specialized devices play a dual role in the system. Firstly, they convert the DC electricity produced by the solar panels into alternating current (AC), which is the type of electricity used in most household appliances and devices. Secondly, these inverters are equipped to handle the two-way flow of electricity, allowing surplus energy generated by the solar panels to be fed back into the grid when not immediately needed by the home. This capability enables homeowners to take advantage of net metering programs, where excess energy exported to the grid can offset electricity usage during times of lower solar generation or at night.
In summary, roof-mounted solar panels and bi-directional inverters are essential components of on-grid solar systems for homes. Together, they harness solar energy efficiently and seamlessly integrate it into your household's electricity supply, contributing to energy independence and potential cost savings.
Components of a Grid-Connected Solar System:
Solar Panels: These are the big flat panels you see on rooftops. They take sunlight and turn it into electricity. Think of them as the power plants of your solar setup.
Inverter: This gadget changes the electricity from the panels into a type your home can use. It's like a translator, converting the solar power language (DC) into the one your home appliances speak (AC).
Breaker Panel: It's like the control center of your home's electricity. It manages where power goes and keeps things running smoothly.
Charge Controller: This device keeps your battery from getting too much charge, making sure it stays healthy and lasts a long time.
Electric Meters: These meters keep track of how much electricity you use from your solar panels and how much you send back to the grid. It's like a scorecard for your solar power.
Safety Switches and Cabling: These are the wires and switches that connect everything together and keep it safe. They're like the nerves and muscles of your solar system, making sure everything works properly.
Electricity Grid: This is the big network that provides electricity to your home. With a grid-connected system, you can both use electricity from the grid and send extra power back to it when you have too much.
Benefits of an On-Grid Solar System:
Always-On Power: Even when the sun isn't shining, you can still have electricity. Plus, if you have a battery backup, you can store extra power for when you need it most.
Savings on Energy Bills: Using solar power can seriously lower your monthly electricity bills. And if you make more power than you use, you can even get paid for it!
Generate Your Own Electricity: With solar panels, you're not just relying on the grid. You can make your own electricity, which means more independence and control over your energy.
Environmentally Friendly: Solar power is clean and green, meaning it doesn't pollute the air like fossil fuels do. By going solar, you're helping the environment and reducing your carbon footprint. Plus, many governments give incentives to go solar because it's so good for the planet.
